Automation

Tower Storage Automation System

Laser cutting solutions Provider
On Demand Customization Process intelligence

offer

Tower Storage Automation System / Automation

  • 料庫


  • Overview

    "The process of Intelligent, productivity enhancement."

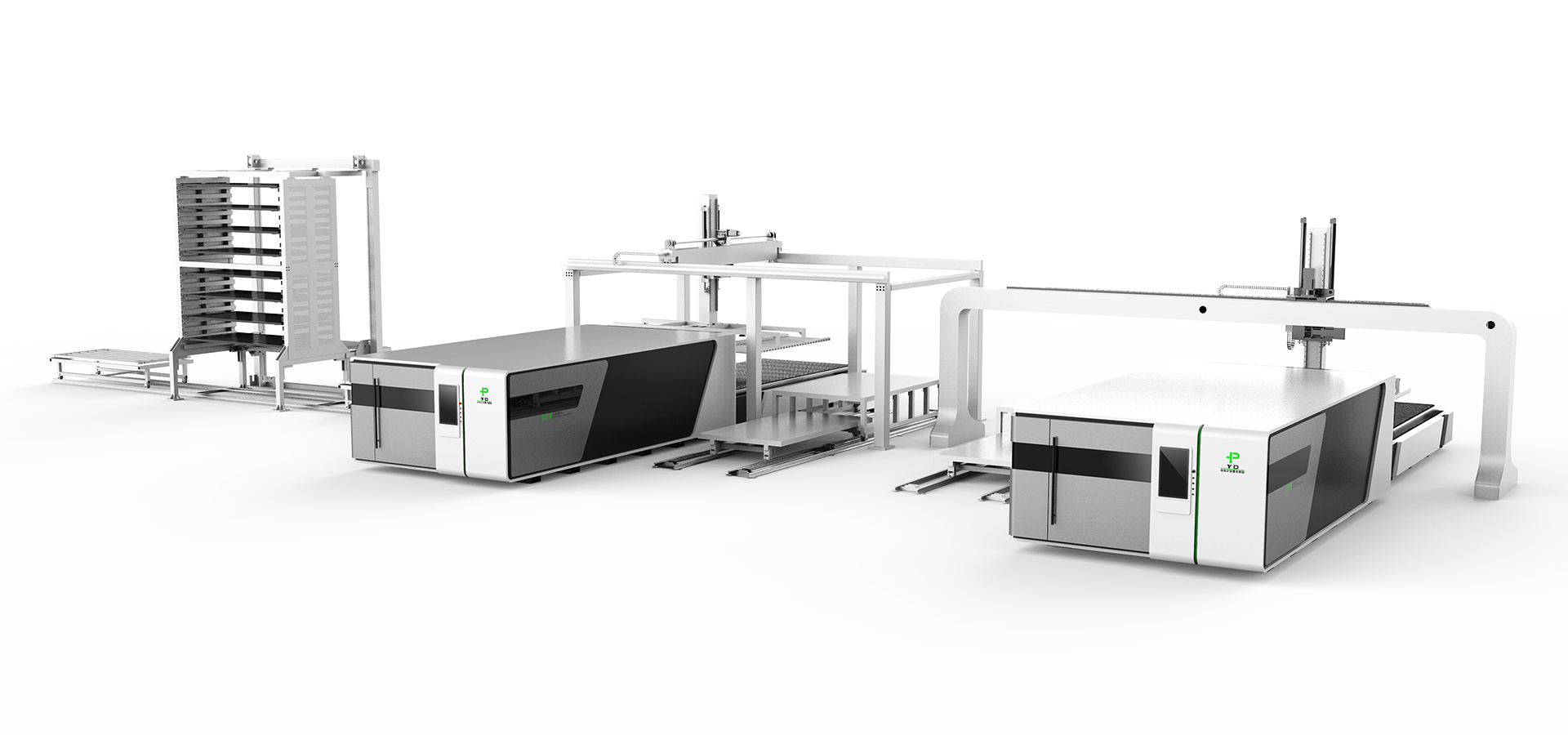

    The Tower provides capabilities for auto loading and unloading of raw materials and finished parts, to create a productive and flexible manufacturing environment.

    Automatic sheet separator function and automatic double sheet detection function to ensure materials loading efficiency.

    Two types of tower design, customer can choose the one that best fit into their factory and minimize the production floor usage.

    Modular type design, compatible with all the major brands laser cutting machine in the market;

    In-house R&D, we can customize the design according to what our customers need.

    Perfect automation with G & H series.


    Intelligent

    SpecificationYD3015-8-TowerYD3015-12-TowerYD3015-16-Tower
    no of levels81216
    Maximum net load per level3T3T3T
    Maximum allowable sheet size3050*15303050*15303050*1530
    Maximum raw material height
    (Not include wood pallet)
    120mm120mm80mm
    Sheet thickness:1-20mm

    Laser cutting can be used in different field according to application.

    rail transit
    Aerospace
    Automobile manufacturing
    Ship manufacturing
    Kitchen utensils
    Elevator manufacturing
    Sheet metal processing
    Household Electric Appliances

    CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.

    • Auto Optimize Imported Drawing

      CypCut will automatically optimize the errors when import drawing, delete duplicates and invisible graphic, smooth curve and join line segments etc.

    • Graphical Cutting Technique Setting

      Graphical design of technique setting, quick and easy to finish setting of lead line, micro-joint and kerf width compensation etc. of single or large quantity parts.

    • Flexible Production Mode

      CypCut provides floating and workpiece coordinates for small and large quantity production.

    • Statistic of Production

      Thorough and timely statistic of machine production to help you manage the task schedule.

    • Precise Edge Finding

      Support capacitance and photo-electric sensing to find workpiece edge and offset sheet placement angle.

    • Dual-Drive Error Offset

      Auto correct the dual-drive position error each time after machine axes return origin.

    FSCUT7000 is EtherCAT system developed for ultrafast picosecond and femtosecond laser precision cutting. Adopting latest algorithm and EtherCAT technology, by standard communication protocol and parallel PLC, it can achieve high speed and precision laser control of 0.1um~10um interval (PSO), and highly automated production.

    • Technical Data

      Control software UltraCut
      Bus station CypTronic-EP PC
      I/O station HPL2720E BUS I/O terminal board
      BCL4516E BUS I/O extension board(optional)
      Power supply 24V DC/5A
      PSO Support 9 laser control modes, laser on interval 0.1μm-10μm can be adjusted
      Motor control Support up to 32 EtherCAT servo axes control in same time
      Extension Support up to 32 EtherCAT I/O stations
      Acceleration Maximum control acceleration 5G
      Precision Theroical control precision ±1um
      Work environment Temperature: 0~60℃
      Humidity: 10%~90%RH(no condensation)
    • Benefits

      Function Features Support laser position synchronized output (PSO function), laser output interval 0.1-10μm.
      Support 9 laser control modes, and compatible with various ultrafast laser brands.
      Communicate with laser by RS232 and Ethernet for parameter and status access.
      Support technique of transition line, lead line, Fly Cut, speed turning point, speed adjust in curve position.
      Support dual-Y structure production.
      Support to edit and execute parallel PLC process.
      Compatible with ModbusTCP, ADS and other standard protocols to guarantee online production.
      Provide optional vision positioning module to locate production by circle and cross mark.
      Control performance Communication: RTOS real time core, signal cycle 1ms.
      Precision: control precision 1μm.
      Support compensate pitch error from interferometer measure data, also support offset mechanic orthogonality.
    • Application

      Suitable for cutting pipes of various metal materials, thicknesses, and shapes, it can meet the needs of different industries. For example, in fields such as mechanical manufacturing and construction, laser cutting machines for pipes are widely used.

????YD Laser Technology Co., Ltd.It is a professional R&D and production company Laser cutting machine A modern manufacturing enterprise. Since its establishment, the company has focused on optimizing and integrating resources in various aspects such as technology, quality, application, and market. Laser cutting machines guided by "high efficiency, high performance, and high precision" are widely used in various fields such as automobiles, steel, ships, machinery, aerospace, national defense, and rail transportation.Yida LaserFocusing on large, medium, and small format laser cutting machines. Centered around the business philosophy of "establishing a business with precision and winning with quality", we continuously improve product quality and gain the trust and support of our customers! To learn about the latest product quotations, you can contact our website http://www.ydjgkj.cn/ We will contact you as soon as possible on the phone number provided.
If everyone is interested in our Tower Storage Automation System If you have any further questions, please click on our website for consultation:http://www.ydjgkj.cn/

This product specification may differ from the description subjected to countries rules and regulation. We reserve the right to amend according to technology, equipment model, price and range of accessories. Please contact your local agent to find out more about our products.
